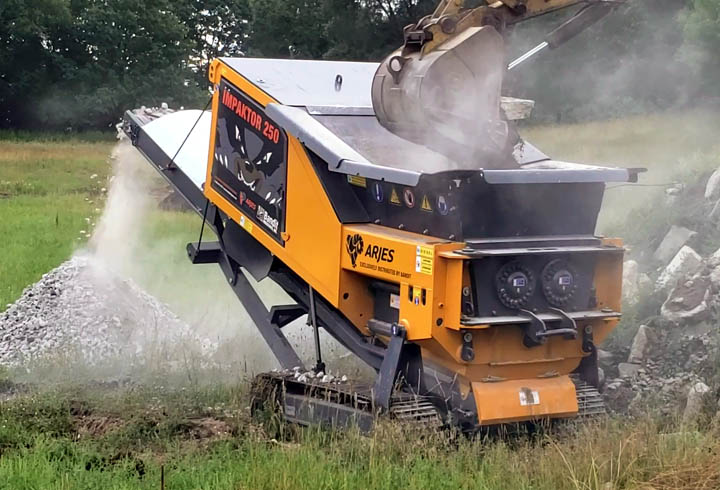

Arjes Impaktor 250

  • Key Features and Options

    • Patented dual-shaft design
    • Precise cutting uses less energy
    • Compact and low weight
    • Auto reverse function helps product cutting tools
    • Low wear part maintenance
    • Short Set Up Times
    • Tracks provide exceptional maneuverability
    • Available as Staionary Electric Unit
    • 22′ long x 7′ 10.5″ wide x 9′ 2″ high
    • Weight- 29,763 lbs.
    • Engine- 200 HP Volvo Tier 4f
    • Shafts- 59″
    • Shaft Speed- 11-45 RPM
    • Torque- (2) 80,000 ft./ lbs.
    • Conveyor Width- 31.5″
    • Conveyor Speed- 118″/ second
    • Discharge Height- 11′ 5″

Description

No other slow-speed shredder on the market can match the Impaktor 250 in versatility and performance at this size and price point. Grind, crush and shred concrete, rubble, asphalt, bricks, ceramic, metal, wood, and waste from a single machine! Special shaft geometry positions material to be crushed, then secondary double jaw breakers, in conjunction with the breaker bars, help operators achieve a more uniform final product size. In short – the 220 horsepower Impaktor 250 is the most compact, most versatile slow speed shredder available today.
The Impaktor 250 is designed from the ground up to really produce. It’s able to do this by being easier to transport, quicker to set up, and tougher on a variety of material you need to shred. The larger infeed hopper means less prep work to feed material, and compact dimensions means its easier to tow and position, weighing only 13.3 tons.
The Impaktor 250 can be outfitted with either standard Impaktor shafts or the special paddle shafts, depending on the application. And the switch is relatively quick, taking only a few hours, thanks to the unique quick change cassette shaft system.
Rip, shred and crush a wide variety of material with the Impaktor 250. No other shredder can handle as wide a variety of materials. Operators can crush material such as concrete, rubble, asphalt, then switch to processing metals, and then finish with green waste and C&D waste – all from the same machine.

TECHNICAL SPECIFICATIONS

Standard Metric
Width 94.50 in 240 cm
Height 110 in 280 cm
Length 264 in 670 cm
Weight 29763 lbs 13500.30 kg
Fuel Tank 75 gl 285 l
Hydraulic Tank 26 gl 98.40 l
Power 220 hp 164.10 kw
